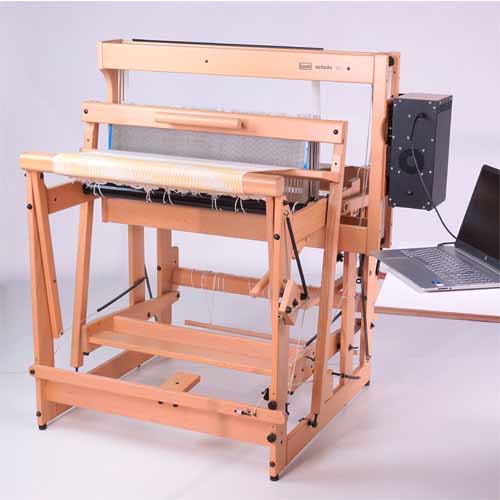

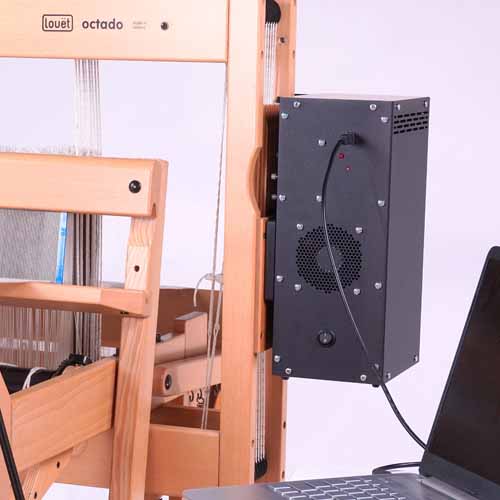

Louet's Octado is an 8-harness dobby loom that means that you'll never have to crawl under a loom to change the tie-up again! The dobby selects which harnesses will be lifted for each pick, following the sequence that you have prepared in advance. The electronic dobby works in conjuction with weaving software from Fiberworks PCW, Patternland, Weavemaker, Weave It, WeavePoint, or Pro Weave to interpret your design and lift the correct combination of harnesses for each weft pick. Replacing the traditional treadle and lamm operation means that an infinite number of harness lifts is possible--you are no longer limited to the number of treadles that can fit under your loom. And there is no climbing under the loom to tie up treadles. A single treadle under the loom lifts the harness combination that the dobby selects.

The Octado's features:

• constructed of lacquered beech hardwood
• 8 harnesses
• available in 70cm (27.5"), 90cm (35.5"), and 110cm (43.25") weaving widths
• includes floating breast beam that keeps the tension on the warp uniform
• includes built-in raddle
• comes with stainless steel 10 dent reed
• includes 12.87" Texsolv heddles: 600 for the 70, 800 for the 90, and 1200 for the 110
• large shelf above castle provides storage
• comes with lease sticks and 16 warp sticks

The Octado ships unassembled except for the castle section that houses the harnesses and cords, which is pre-assembed.

Available accessories:

• adjustable bench
• second warp and back beam kit
• fly shuttle device
• treadle height adjusting blocks

Weight and dimensions:
Octado 70 - 45.25"W x 39"D x 50"H; 99 lbs
Octado 90 - 53"W x 39"D x 50"H; 106 lbs
Octado 110 - 61"W x 39"D x 51.625"H; 117lbs
